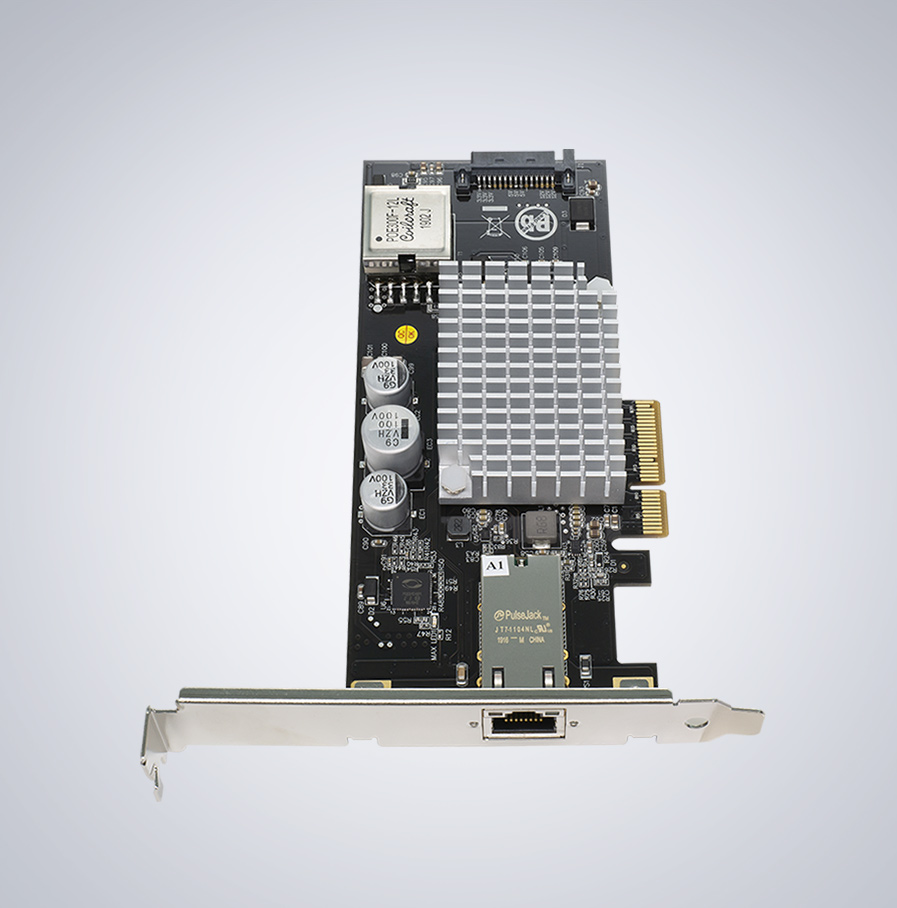

PCIE-POE1-MG2 supports 10GBASE-T Ethernet in compliance with the IEEE 802.3an standard, as well as 5 Gbps and 2.5 Gbps Ethernet speeds over standard Cat 5e and Cat 6 copper cables. Compliant to the IEEE 802.3bz standard ratified in September 2016, the PCIE-POE1-MG2 is also backwards-compatible with legacy 1000BASE-T Ethernet.
- Описание
- Характеристики
- Задать вопрос
-
Manufacturer # - ioi GE10P-PCIE4XG301
PCI Express - PCI Express Gen3 or Gen2, (Supports line rates of 8.0 GT/s and 5.0 GT/s per lane)
- Bus width: Supports Gen3 x4 or Gen2 x4
- MSI, MSI-X, and legacy INTx PCIe interrupts, Improved CPU utilization and network performance
MAC - Large Send Offload (LSO), Receive-Side Scaling (RSS), Direct Cache Access (DCA) header checksum
- WoL power management
- On-chip CPU DASH
- MACsec
- Quality of Service (QOS) support
- Jumbo frames (up to 16Kbytes)
- IPv4, IPv6/TCP and IPv6/UDP checksum offload
PHY - Integrated Aquantia AQrate PHY featuring NBASE-T technology
- 100 meters over Cat 6a at 10Gbps
- 100 meters over Cat 5e and Cat 6a at 5Gbps/ 2.5Gbps/ 1Gbps/ 100Mbps
- Advanced cable diagnostics with On-chip high resolution cable analyzer
- Audio Video Bridging (AVB) and 1588v2
- EEE support
- Supported Data Rates: 10G/ 5G/ 2.5G/ 1G/ 100 Mbps
- Standard compliance: IEEE 802.3bz – NBASE-T, IEEE 802.3x – flow control, IEEE 802.1P – quality of service, IEEE 802.1QAV – AVB
Number of Port - One 10GBASE-T RJ45 Ethernet port with Screw Holes for thumbscrew locking Type Ethernet Cable
-
Общая информация
Модель PCIE-POE1-MG2
-
